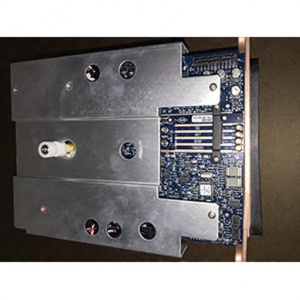

Electronic Vaporizer Assembly 1011-7004-000-S
1011-7004-000-S | |
1011-7004-000 | |
Nuovo | |
Sistemi per Anestesia | |
GE HealthCare | |
GE HealthCare | |
N/A | |
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto
The Electronic Vaporizer Assembly is an integral subsystem along with the agent cassette. The subsystem is provided to add an agent to the fresh gas flow. It mixes a specified amount of anesthetic agent into the fresh gas stream. The electronic control unit governs the flow through the agent cassette and the agent concentration in the fresh gas flow. The agent is delivered from the subsystem in one of two configurations depending on whether cassette pressure is below or above mixer output pressure. It consists of a backpressure valve which builds a pressure at the input to the vaporizer to drive gas through the cassette, if necessary a pressure relief valve that limits the maximum outlet pressure, the inflow and outflow flowmeters which measure flow by developing a pressure drop across a flow restrictor, the inflow and outflow valves which direct flow in the subsystem and an inflow check valve that prevents unmetered agent vapor from flowing backwards and entering the fresh gas stream.
Parte equivalente
Di seguito sono riportate maggiori informazioni sulle parti equivalenti. Le parti senza un collegamento ipertestuale sono indicate solo a scopo di riferimento e non sono disponibili per l’acquisto online.
Parte equivalente | Dettagli parte |
---|---|
1011-7004-000 | Electronic Vaporizer Assembly |
