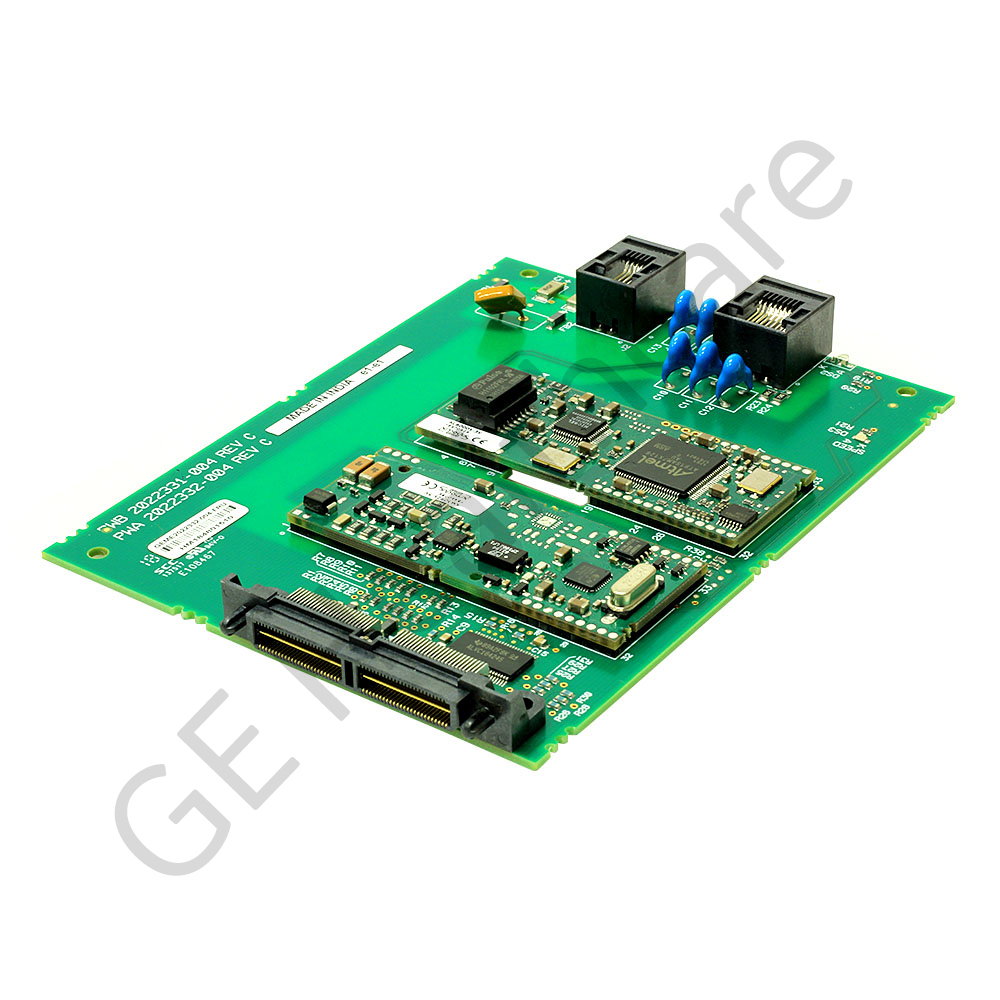

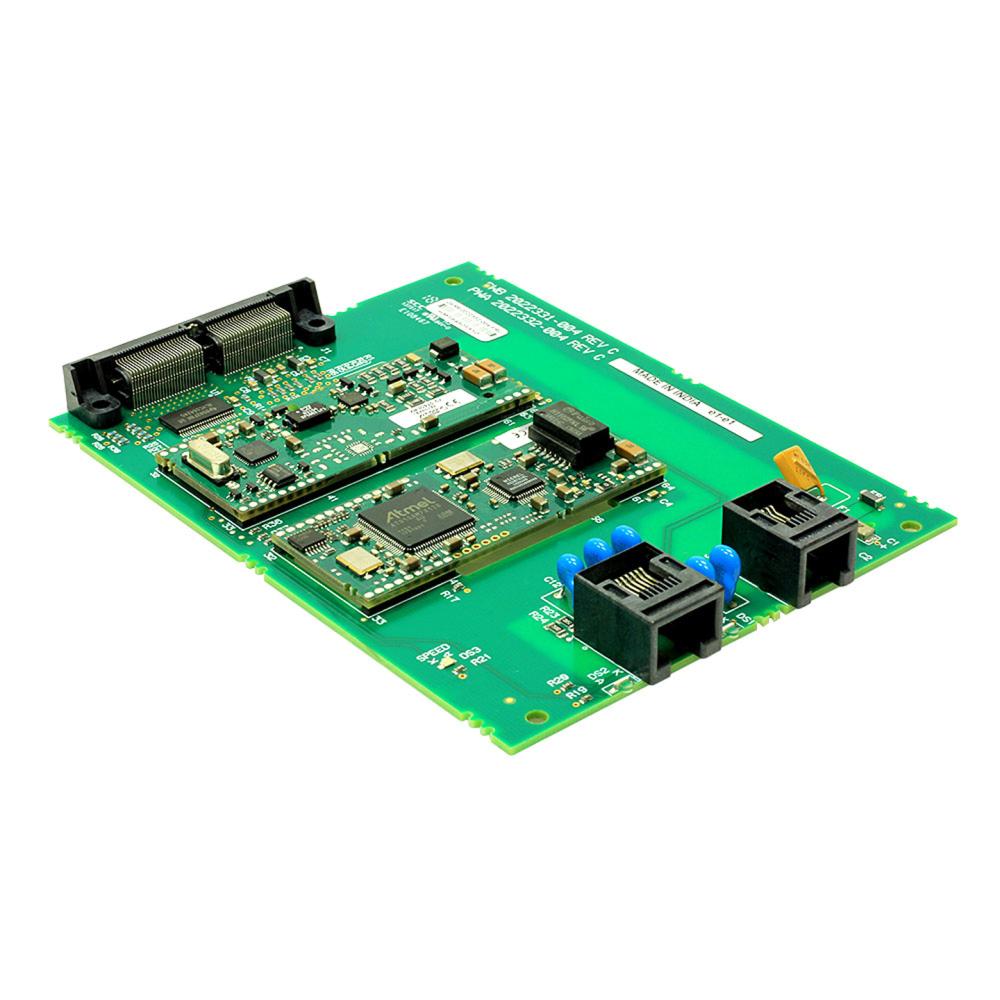

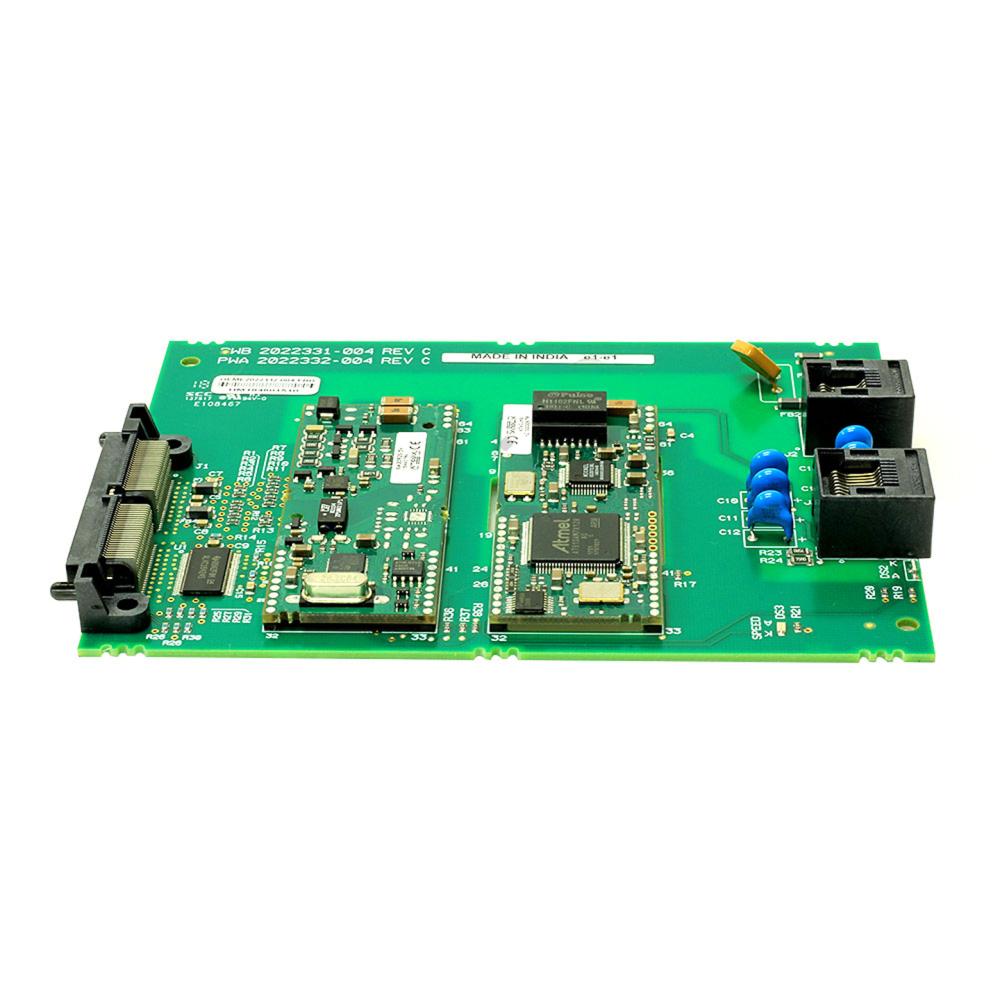

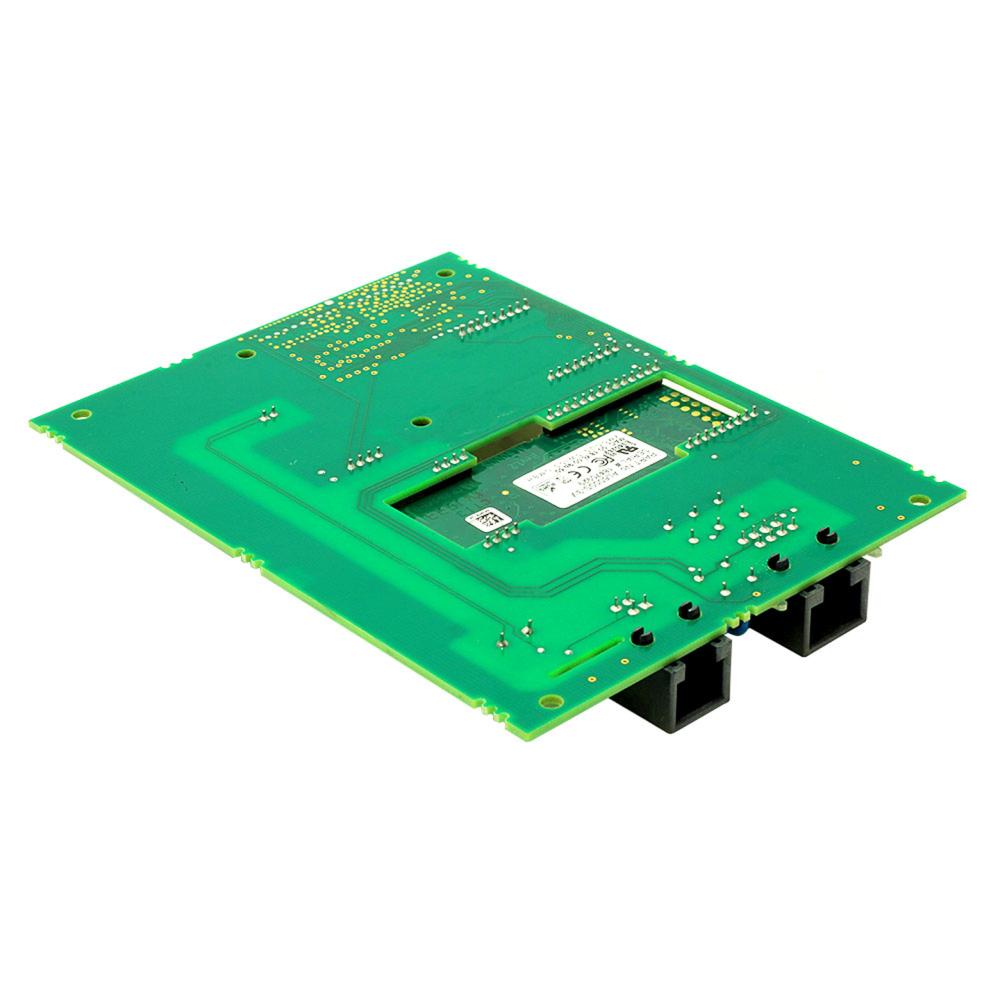

Printed circuit Board (PCB) Assembly MAC 5500 XM Communication Board - RoHS
| 2022332-004 | |
| 2022332-002 2022332-003 | |
| Nuovo | |
| ECG Diagnostico | |
| GE HealthCare | |
| GE HealthCare | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto
The PCB Assembly MAC 5500 XM Communication Board is used in diagnostic ECG systems. This board is compatible with CPU board 801212-008 and it is not compatible with CPU boards 801212-007 or 801212-006. One should ensure which software versions are compatible with which CPU and communication boards before replace either board or upgrading your software. The 2022332-004 communication board is not compatible with the version 10A software. If it needs to be upgraded to this communication board on a device with version 10A software, one should upgrade to software version 10B. The 2022332-004 communication board is not compatible with the version 9C software. If it needs to be upgraded to this communication board on a device with 9C software, one should upgrade to software version 9D. When replacing an earlier board, one must order an SD card with the appropriate software version. To safely remove the communication board, grasp the side edges of the communications board and work it back and forth in the slot as pull it out along its rails and insert the new communications board, sliding it onto the rails until it is seated in place.
Item equivalente:
Di seguito sono riportate ulteriori informazioni sugli articoli equivalenti. Gli articoli senza collegamento ipertestuale vengono visualizzati solo a scopo di riferimento e non sono disponibili per l'acquisto online.
| Item equivalente | Dettagli dell'articolo |
|---|---|
| 2022332-002 | PCB MAC3500 COMMS ROHS |
| 2022332-003 | Printed Circuit Board (PCB) Assembly MAC 5500 Communicati |
