Power tube 4CW25000A
2103230 | |
Nuovo | |
Radiofarmacia PET | |
GE HealthCare | |
GE HealthCare | |
N/A | |
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto
Part Title: Power tube 4CW25000A
Sub-System: Tube Amplifier
Part Type: Special Part
Part Compatibility: PETtrace 800 ,

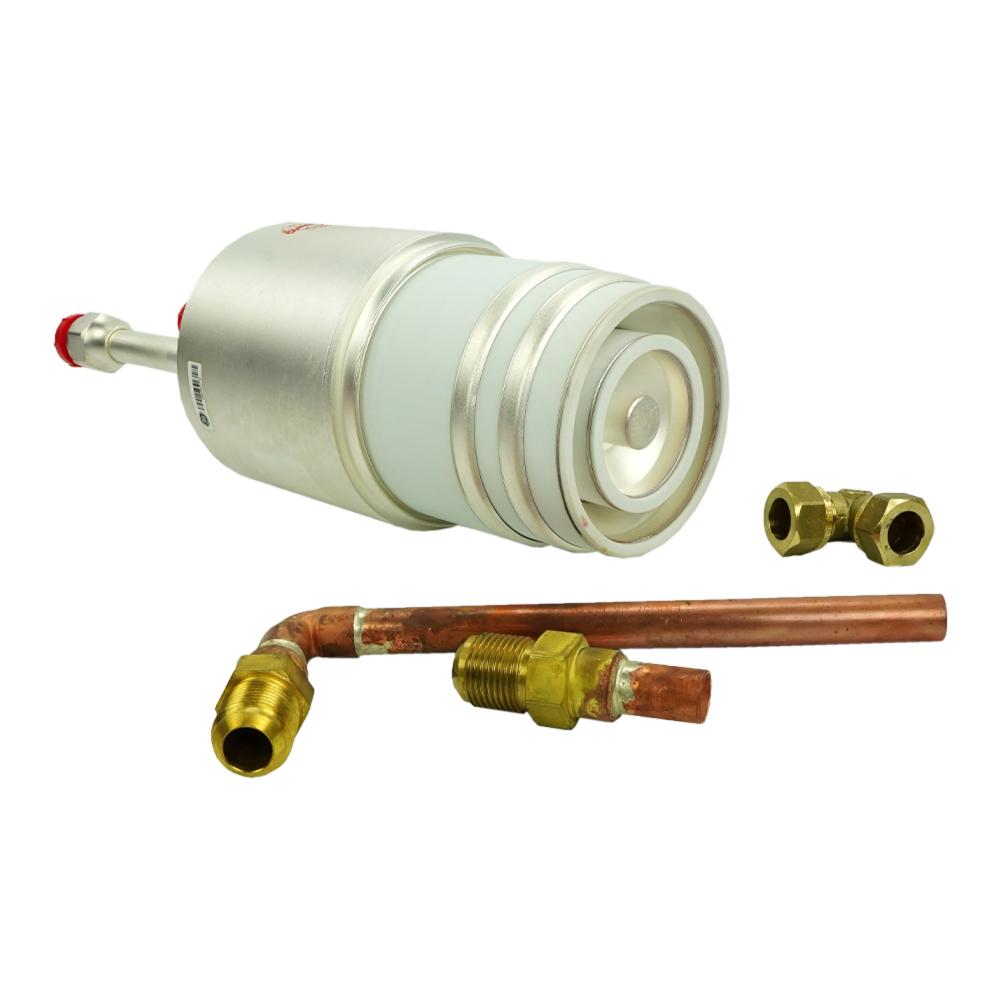

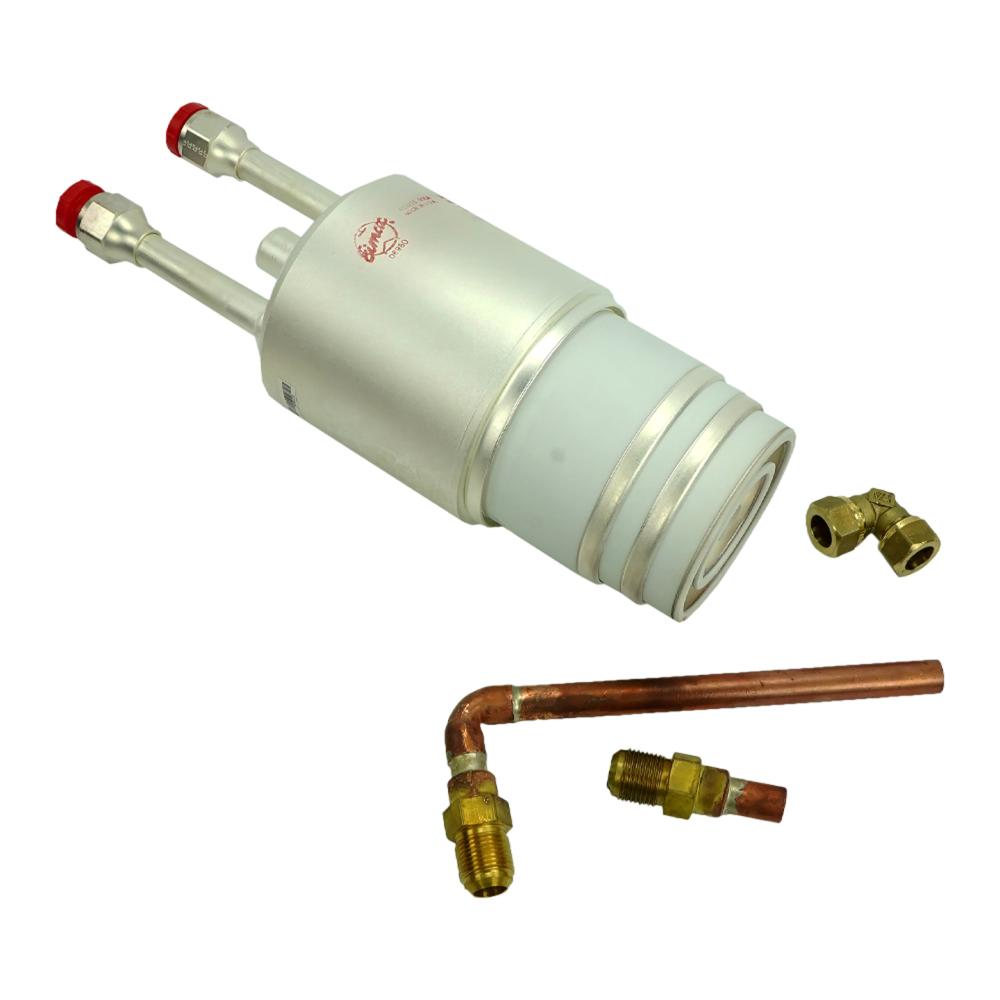

This water cooled Tetrode tube is intended for use in audio and radio frequencies applications and features an internal mechanical structure which results in high Radio Frequency (RF) operating efficiency, and low RF losses which permits operation at full ratings to 110 MHz and at reduced ratings to 225 MHz. The tubes are also recommended for RF linear power amplifier service and for Very high Frequency (VHF) applications. This tube contains a Thoriated Tungsten filament and thermal management is done using water circulation through provided tubings. The assembly comes with a copper water connection tube with a 90 degree Angled elbow, Ferrule nut, Male tube connector and another piece of 90 Degree Elbow. This Power Tetrode Tube is used in the Cyclotron assembly of PET Radiopharmacy systems.
