GENERAL VALVE 1250PSI NC 1/16 in.
2257283 | |
Nuovo | |
Radiofarmacia PET | |
GE HealthCare | |
GE HealthCare | |
N/A | |
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Select your approver's name and submit to add item(s) to your cart
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto
Part Title: GENERAL VALVE 1250PSI NC 1/16 in.
Sub-System: C11
Part Type: Corrective part
Part Compatibility: PETtrace 800 , MINItrace Qilin

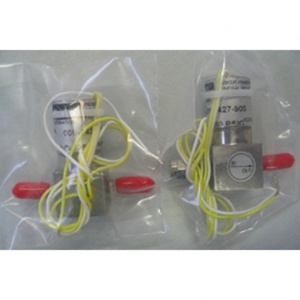

This solenoid valve assembly is compatible for use in the GE's Cyclotron PET Radiopharmacy systems. This valve assembly has one deep inlet port and a shallow outlet port to which tubes will be connected for providing the flow path. This solenoid valve act as a control unit which when electrically energized or de-energized, either shut off or allow fluid flow. When this valve is energized, a magnetic field builds up which pulls the pivoted armature against the action of a spring. When de-energized, the pivoted armature returns to its original position by the spring action. This rugged valve operates with high repeatability, combining high speed and high flow in a small size. The coils are rated for continuous duty and are protected from dust and dirt. For operating the valve assembly this can be easily connected to the circuit board using the provided 2 position female conector.
