Power-Off Brake Assembly
| 2391862 | |
| Nuovo | |
| Raggi X | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto

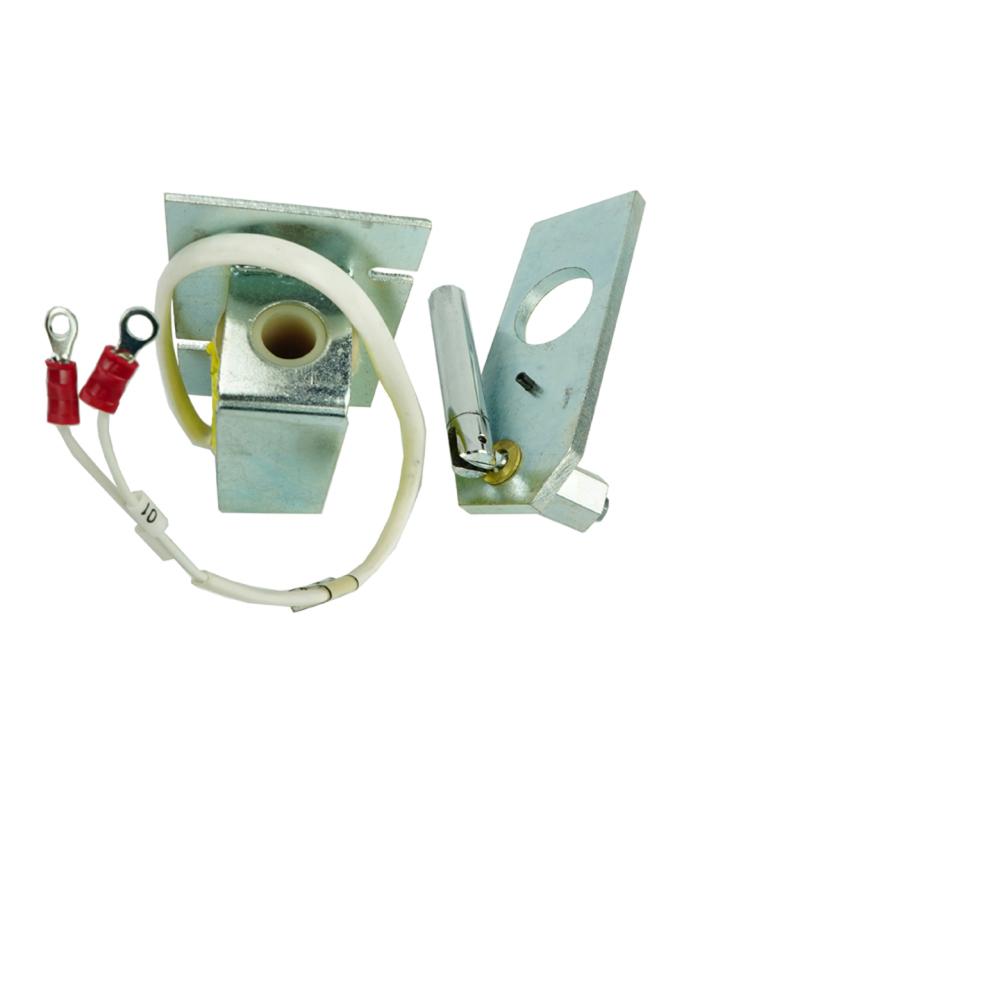

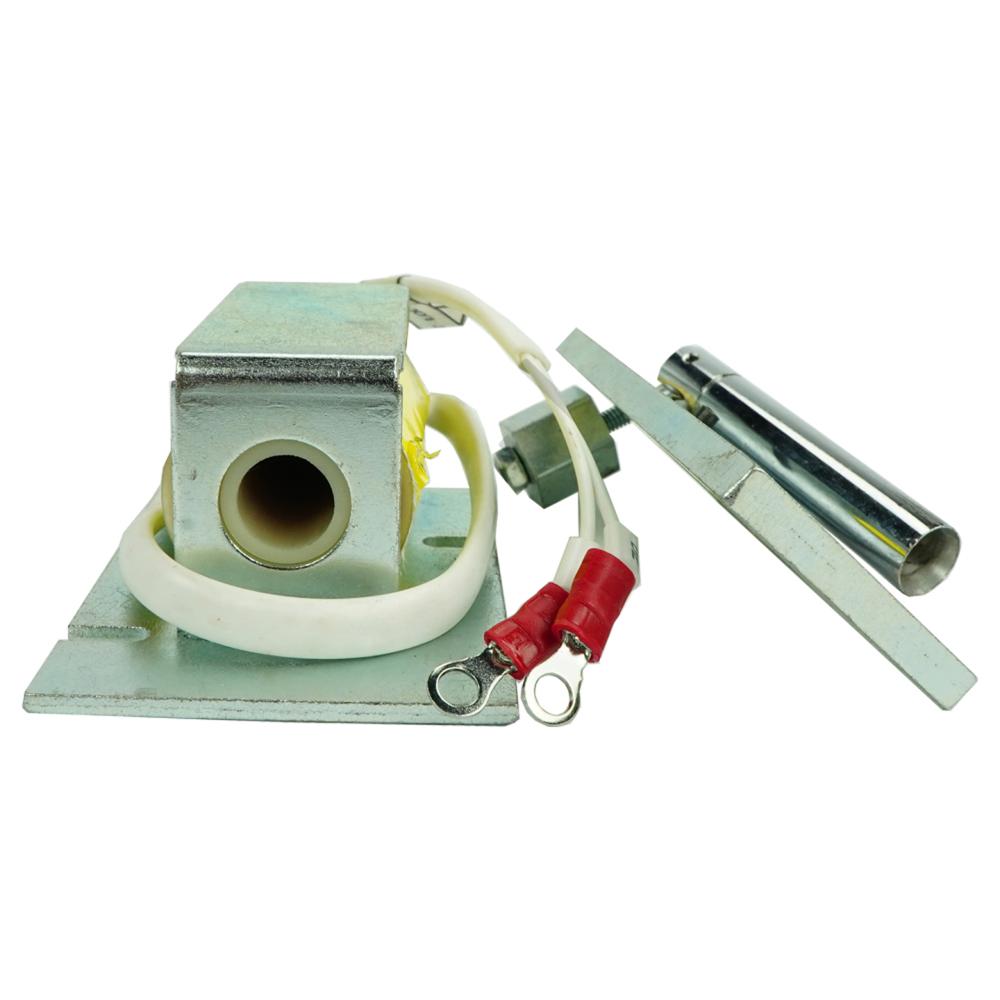

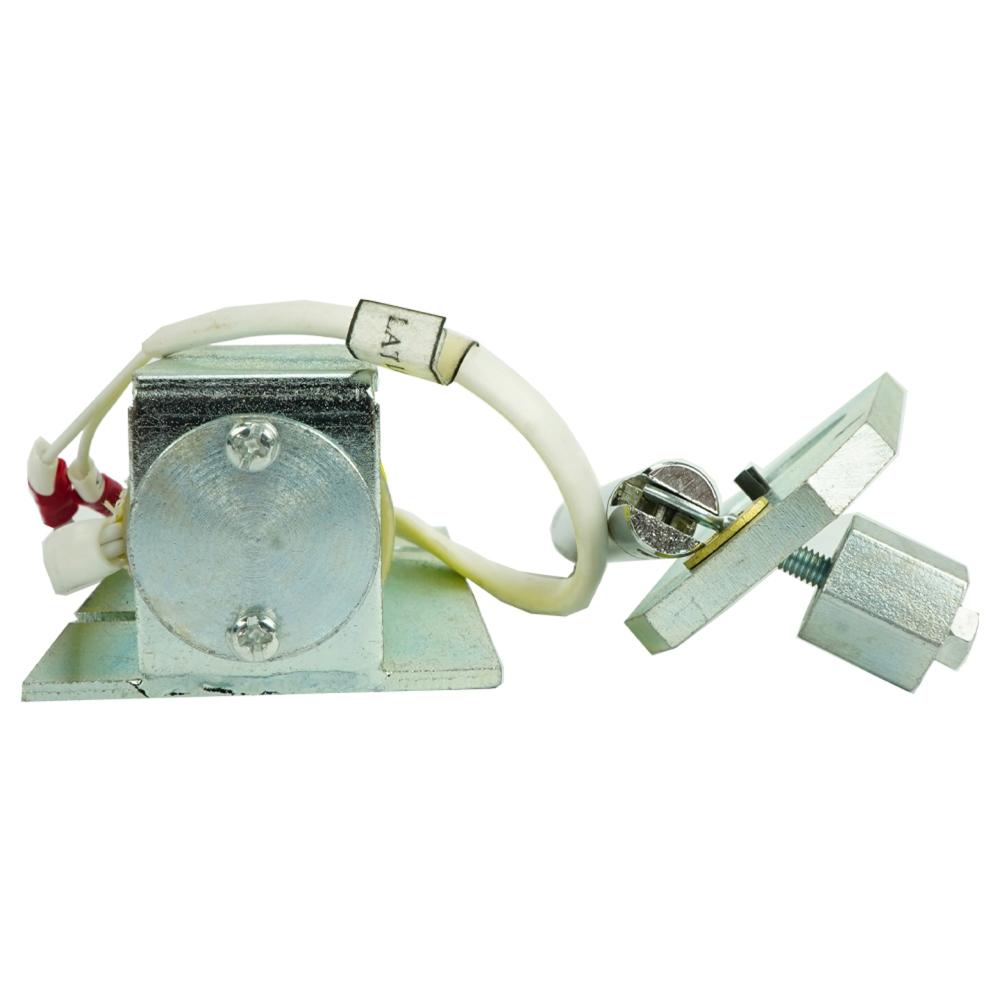

The Power-Off Brake Assembly consists of a bracket assembly, a rectangle brake coil assembly, a RoHS compliant wire, a coil frame, a thin wall soft pipe, a core axle, a coil connecting axle, a pan head screw, a spring lock, a flat washer, a guide nut, a hexagonal nut and a brake plate assembly. These parts together make up the completed assembly. The power-off brake is used in the OTS carriage system to fix the component in position. When the lateral lock system button is pressed, power passes to the lateral lock unit and moves the lock rod backwards. This part is an electromagnetic type lock and remains activated when the power is off. This part also acts as a safety system in OTS carriage. The assembly is being used in the machines like Revolution XR/d, AMX 4+, Definium 8000, Proteus XR/a, Discovery XR656, Optima XR220amx, etc.
