NPSUB Board for NP Lite Table
| 5172410 | |
| Nuovo | |
| Computed Tomography (CT) | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto

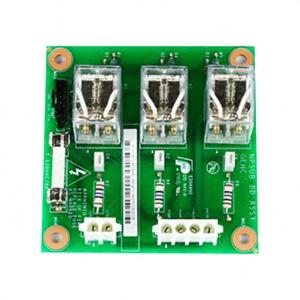

This NPSUB board is part of NP Lite Table and is designed to control up and down movement of the Table. It receives three pairs of +24V control signals from the GTCB2 board and uses the relays to connect or disconnect the input 120VAC power to enable the pump work to elevate the table, or enable the valve work to down the table. The NPSUB board provides the four (Pump_L, Pump_N, Valve_L and Valve_N) alternating current (AC) power signals to the pump and valve. The input power supply of this board is 120VAC and a time-delay fuse with nominal current 8A is provided to protect the circuit. This board can be used with Optima 660, Discovery 750 HD, Optima 520 and Brightspeed Elite systems.
