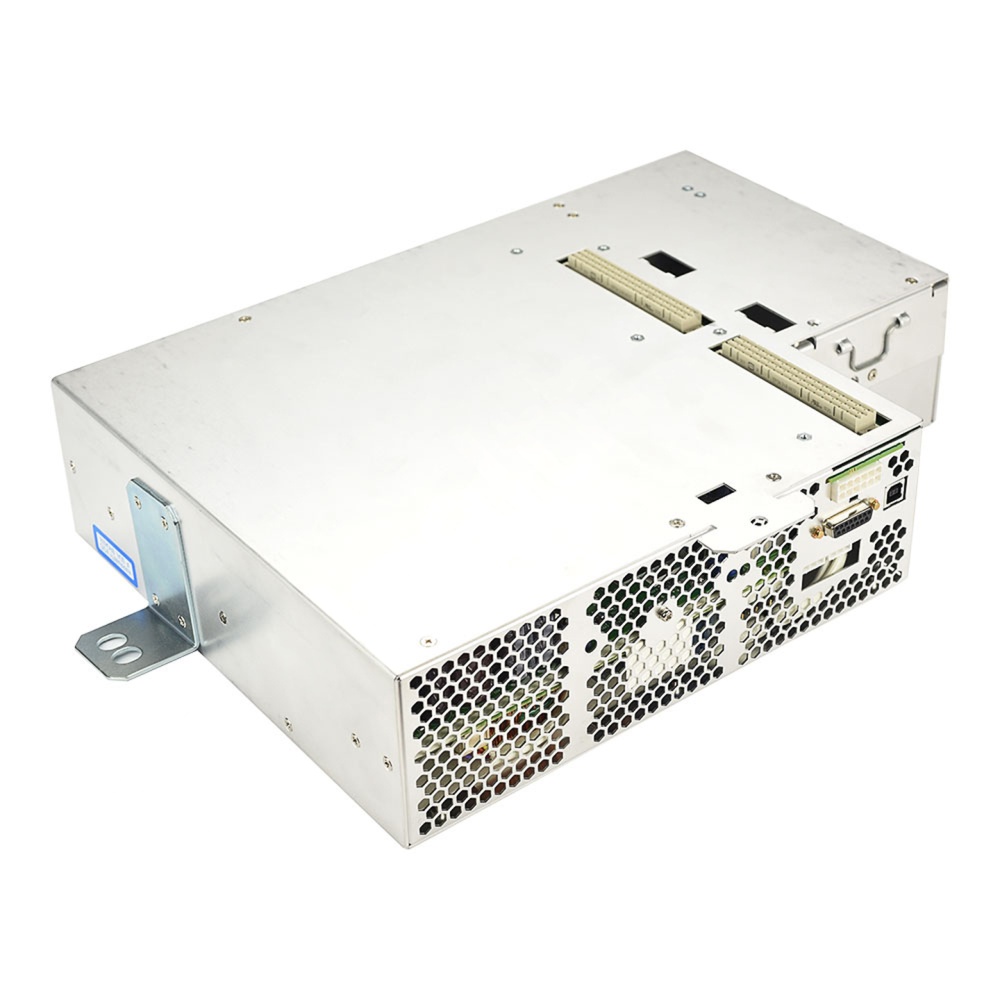

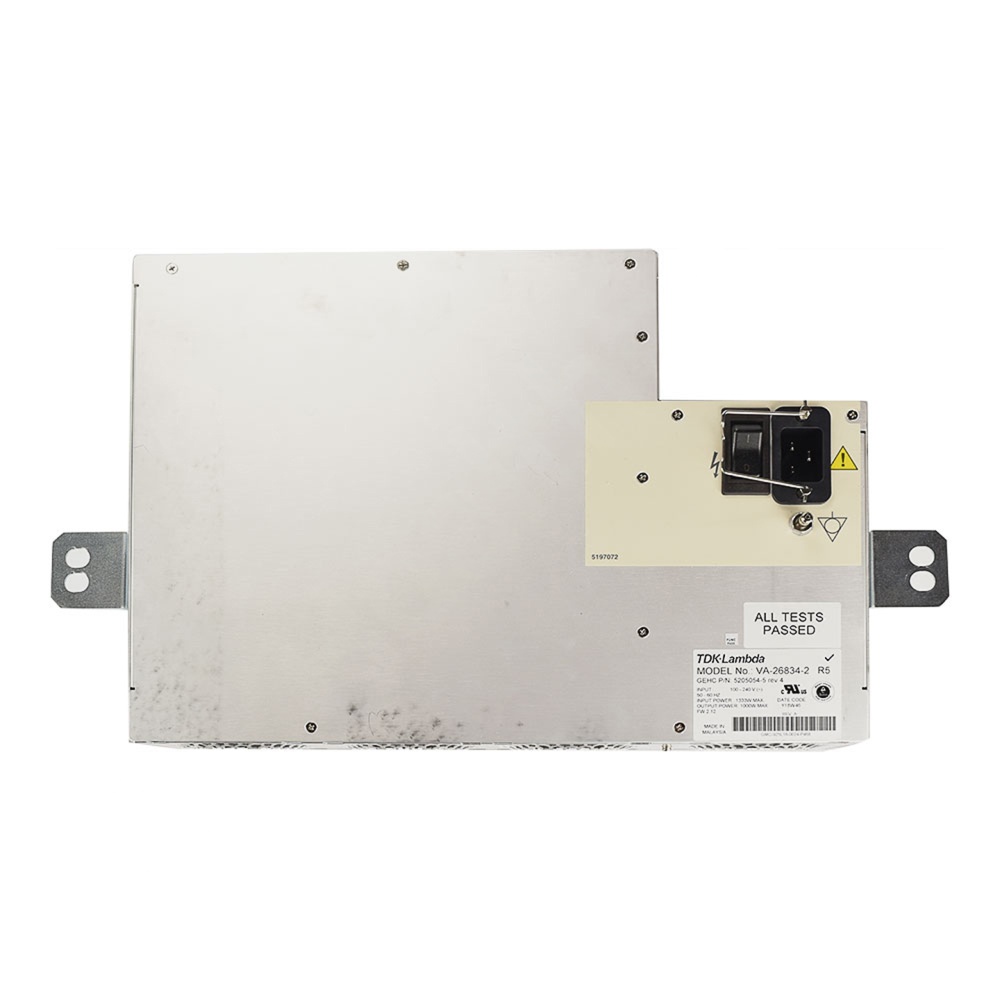

Lambda Main Power Supply With CW and SWE Improvements 5205054-5-H
| 5205054-5-H | |
| Usato | |
| Ecografia | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto
The Main Power Supply is specially designed DC regulated voltage intended for use in GE ultrasound system. The Main Power Supply’s main task is to galvanically isolate the scanner from the on-site Mains Power System and to supply the various internal subsystems with AC or DC power. It is an AC/DC converter generating all main DC voltages at or above 6V. The power supply includes all AC components such as the mains input connector, fuses, filters, and inrush current limiter. The main power supply also has an inverter for 110V output (isolated side). This power supply operates at 90 to 250 VAC input voltage and offers DC output required by the system. It comes in a rectangular shape sheet metal chassis with one corner remove for BEP (Back End Processor) fan and external connection access. This power supply is compatible with consoles running R4 or later. This RoHS compliant power supply comes with with CW and SWE improvements. It can be used with GE's Logiq E9 Ultrasound Systems. 5205054-5-H
