Removable Trackball & Cables with Hirose Connectors Kit
| 5737554 | |
| 5207000-84 5393439-10 | |
| Nuovo | |
| Ecografia | |
| GE HealthCare | |
| GE HealthCare | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto

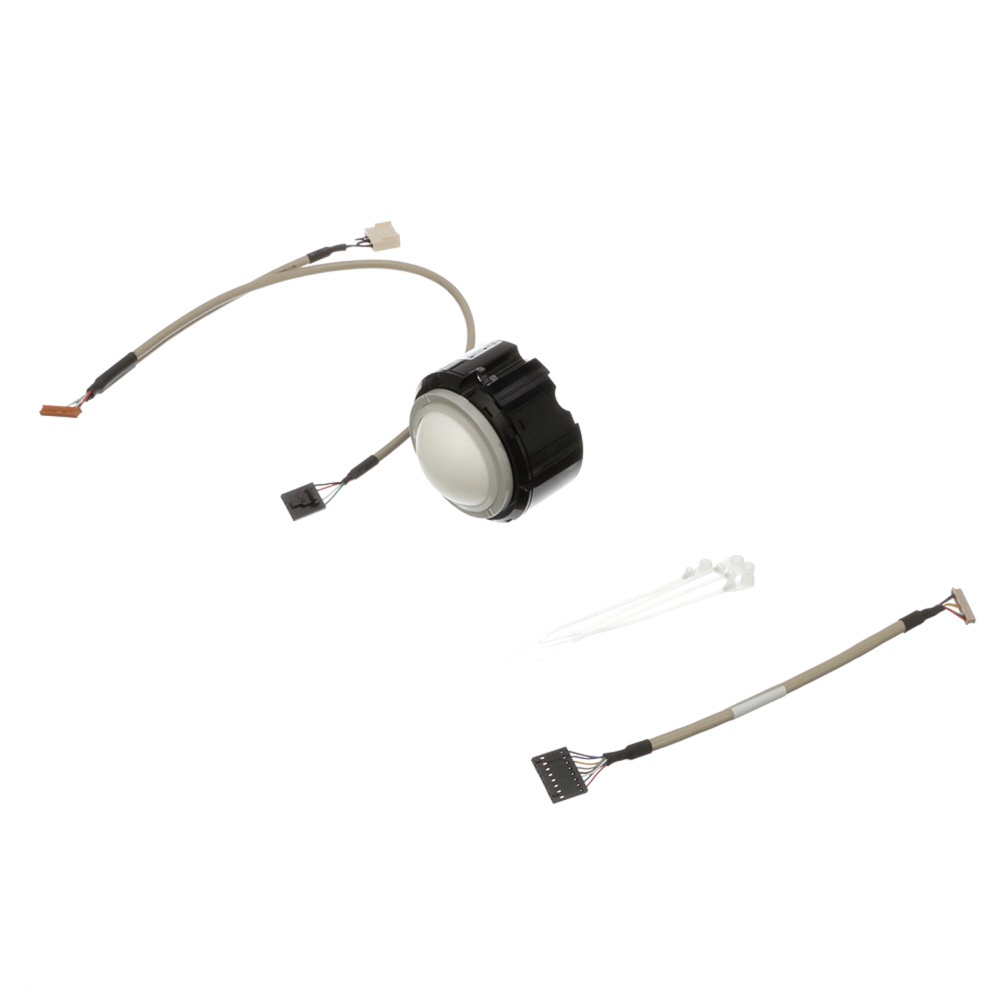

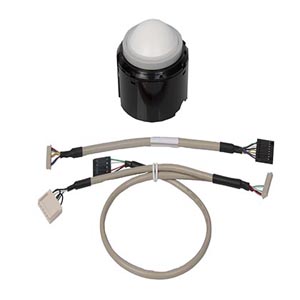

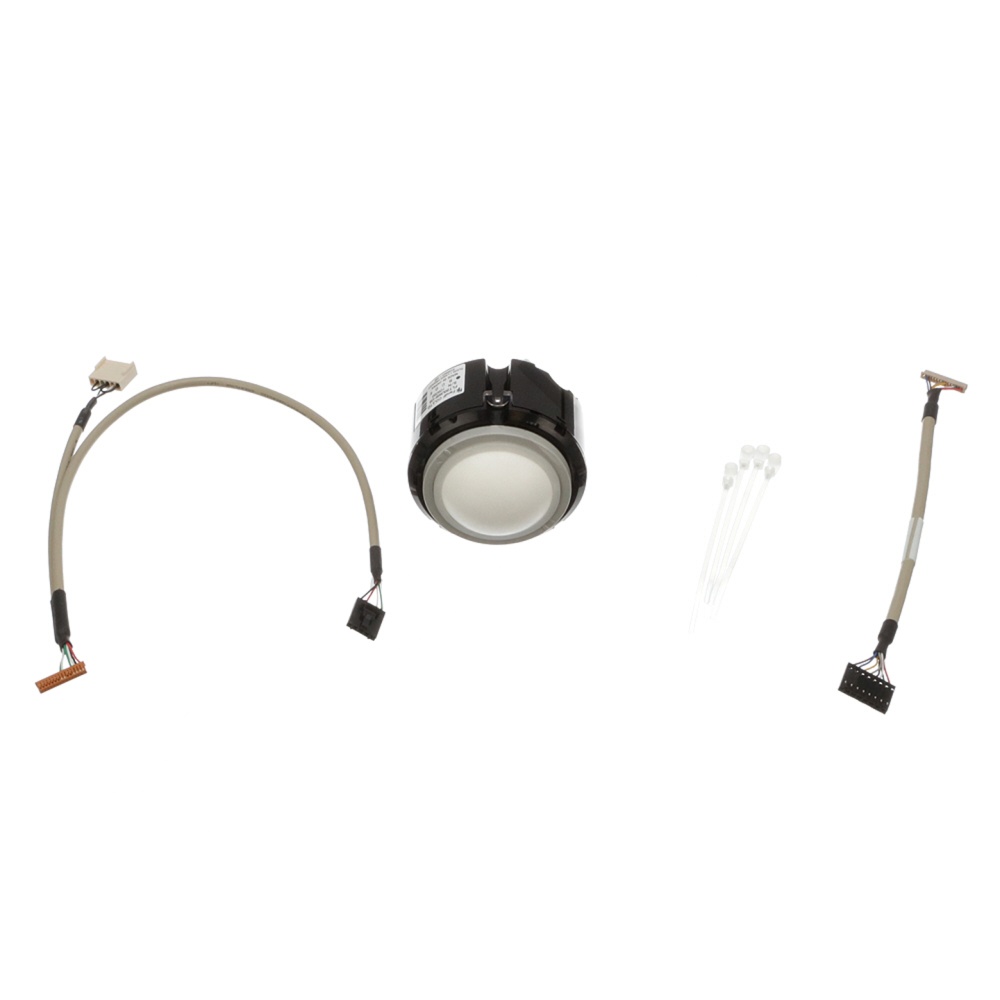

The Removable Trackball & Cables with Hirose Connectors Kit is used in ultrasound devices as a cursor control. It is used during the ultrasound scanning, to scroll through and find the area of interest. There are two trackball interface cables and a trackball, which is removable in style. A proper cable is selected for the OP panel. There are two connections at one end of the cables; the lower OP panel connection and upper OP panel connection. A spare part is provided for the upper OP panel. The one end of each trackball interface cable is attached with a Hirose connector. This connector is a Hirose DF-13 series. These Hirose connectors are used since the connector pins are closer to the trackball and they have two locking tabs at the edge of the connector. Two straps are included to secure the cable to the lower Op panel. This assembly is a spare part, which is enclosed in a protective bag and should be individually packaged for an international shipment. The DF-13 series is small in size and proportional to a self-directing mounting. It is specially developed to exaggerate the space of the board. Though it is small in size, it can perform well with their operations. They are used for many applications such as LED lighting, PC’s, DVD recorders, laser printers and LCD televisions.
Item equivalente:
Di seguito sono riportate ulteriori informazioni sugli articoli equivalenti. Gli articoli senza collegamento ipertestuale vengono visualizzati solo a scopo di riferimento e non sono disponibili per l'acquisto online.
| Item equivalente | Dettagli dell'articolo |
|---|---|
| 5207000-84 | Removable Trackball Interface Cable and Straps |
| 5393439-10 |
|
