Flip Up Door Kit - Giraffe™ Incubator

Assistenza materno-infantile
GE HealthCare
GE HealthCare
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria

Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.

Numero approvazione

Please enter approval number


Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.

Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.

Approvazione seconda opinione necessaria

Select your approver's name and submit to add item(s) to your cart

Approver Name

Please Select Approver Name


Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.

If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.

Informazioni sul prodotto

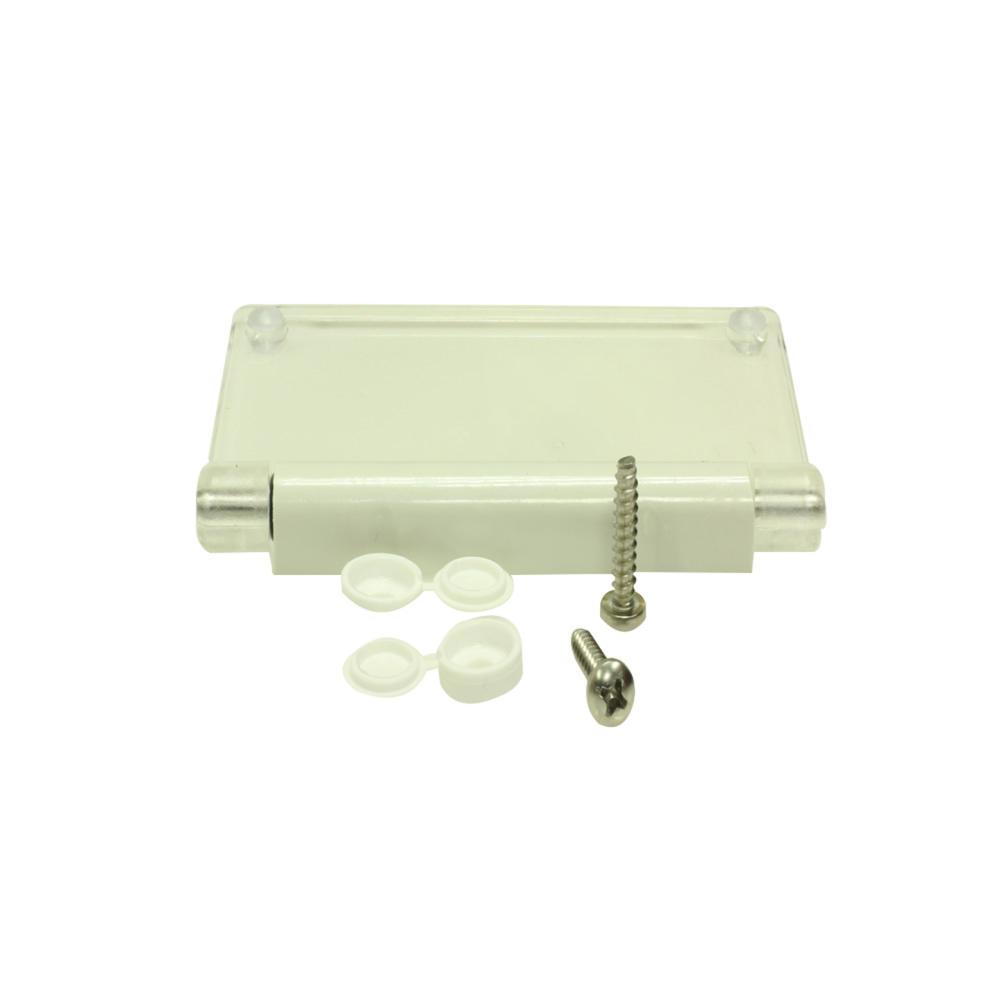

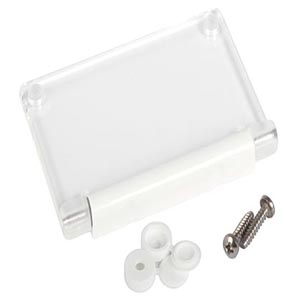

The Flip Up Door Kit is an assembly for the Giraffe™ incubator. The entire assembly contains many components such as door, hinge, bumper grommet, dowel pin and O-rings. These parts are assembled together to make up the Flip Up Door. This is one of the components in the bed side assembly in the Giraffe™ incubator. The door is considered one of the major components in the assembly. It is made up of acrylic plastic material. It has outstanding optical clarity and weather resistance ability. It is lightweight and can withstand extreme cold, sunlight, sudden temperature change, and salt water spray. It has extraordinary expansion and contraction properties due to changing temperature and humidity. It can perform better in the temperature range from -40 0° C (-40 0° F) to 93 0° C (200 0° F). This door has higher resistance than glass to thermal shock. The hinge is another major component in this flip door assembly kit. It is made up of high impact ABS material. It is grey in color. This component is going to be fixed in the down side of the door with the help of two dowel pin. The bumper grommet is fixed on the doors upper side. There will be two grommets in this assembly. It is made up of PVC material. Dowel pins are used to combine both the hinge and the door. A light coat of Vac Kote is applied to the O-ring and is placed in to the hinge. The whole assembly will be inserted in to the door.
