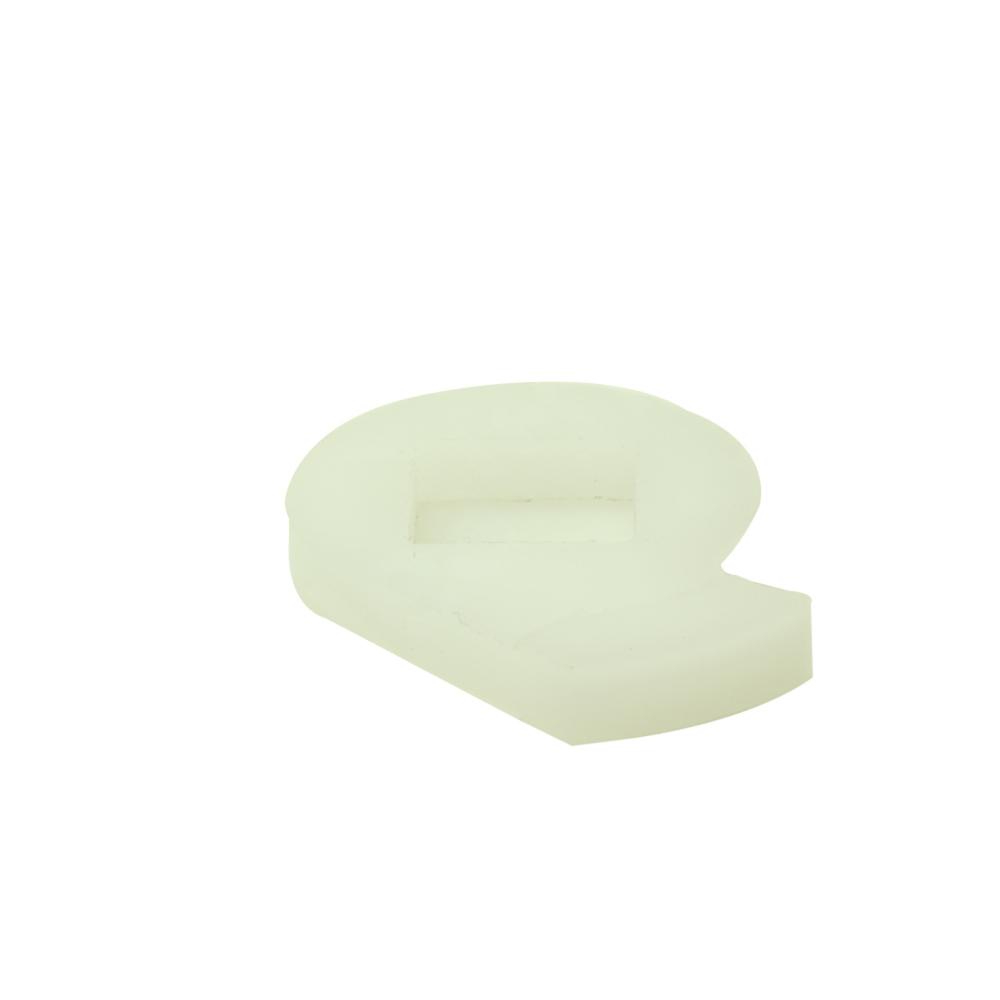

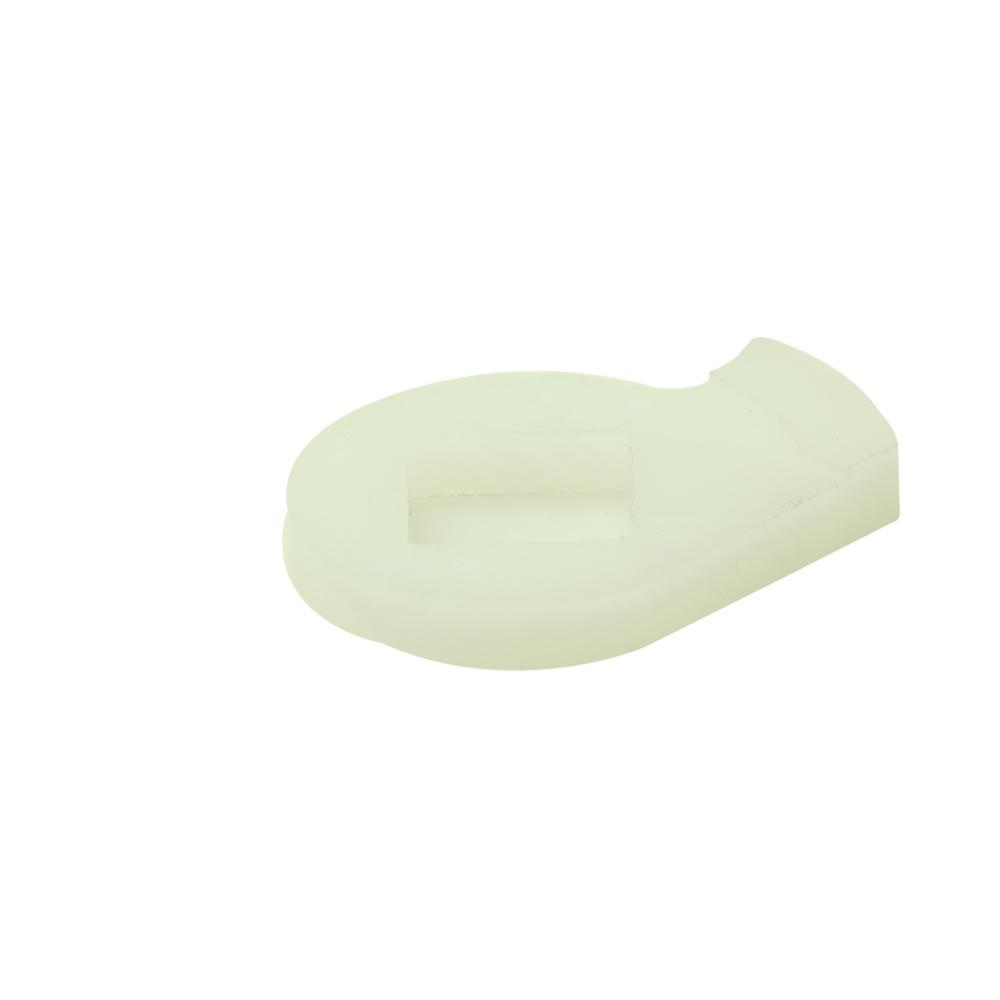

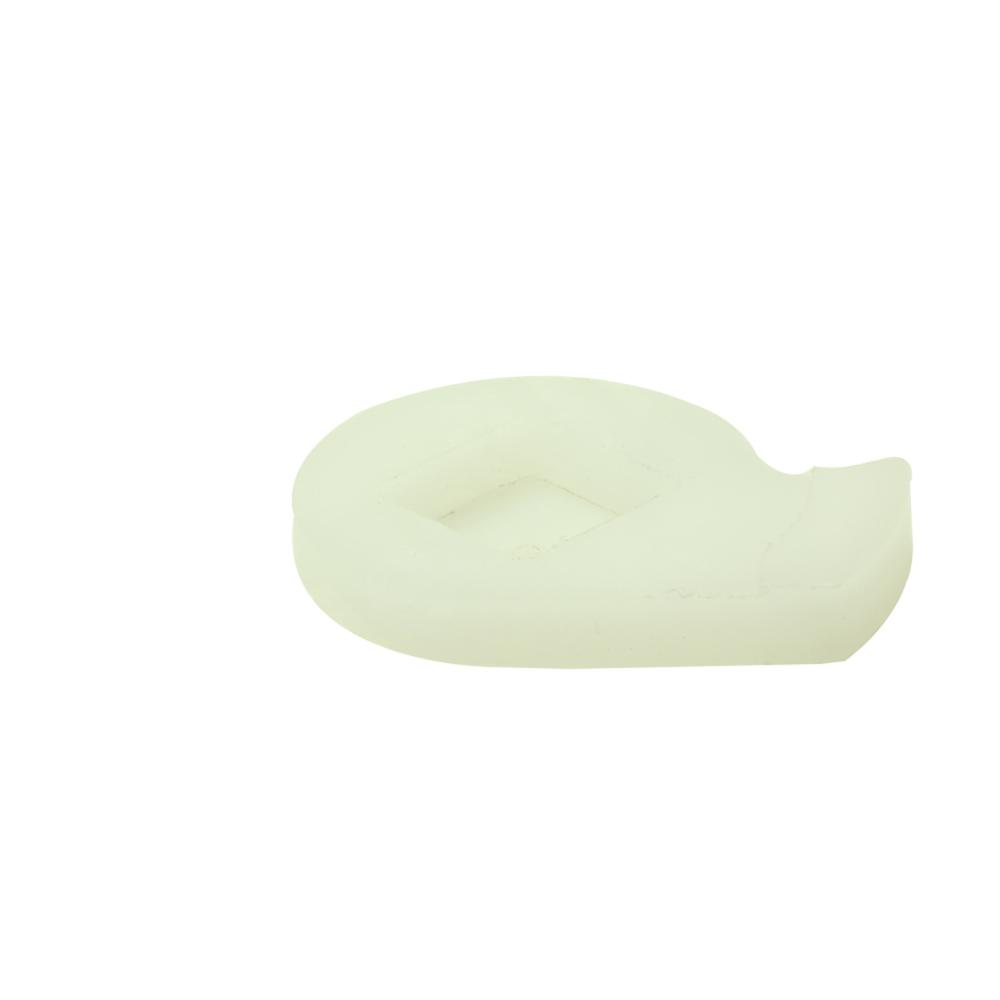

Outer Cam (White) with Notch
| 6600-1892-500 | |
| Nuovo | |
| Assistenza materno-infantile | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto
- The Outer Cam comes as a part of the heater housing assembly in the Giraffe®⢠OmniBed, which combines the features of an Incubator and a radiant warmer. It can be transmitted from one mode to the other. When used as an Incubator, a fan and heater beneath the bed circulate warm air through the closed patient compartment. The Infant can be accessed through portholes or bed panels. The heater housing assembly consists of heater doors, east and west. A cable guide in installed on the edge of the door by means of the outer cam. The notch on the raised portion of the cam faces away from the spring and spool assembly. There are switches installed on the cam such that, the rotation of the cams closes or opens the switches, thus providing heat to the device when needed. It is made of Delrin®, a thermoplastic material which is highly tough. It has high resistance to chemicals and is dimensionally stable, making it reliable.
