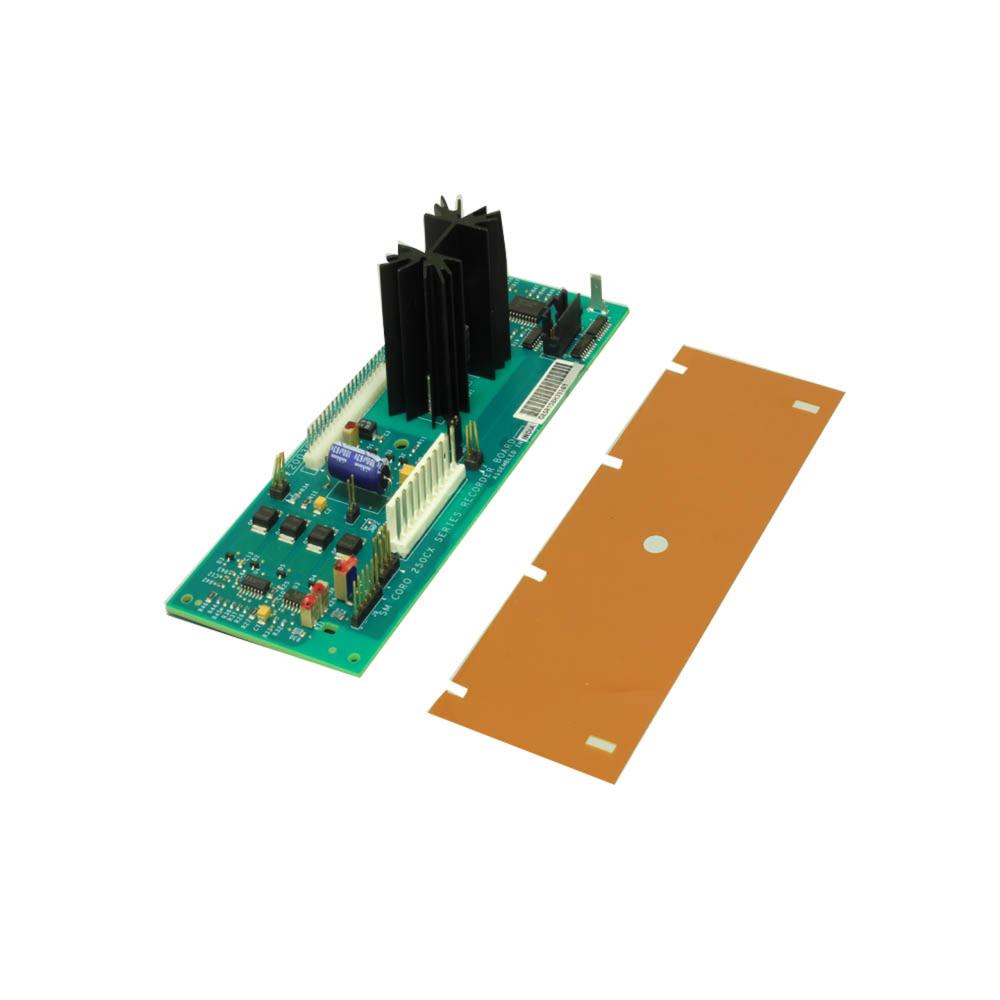

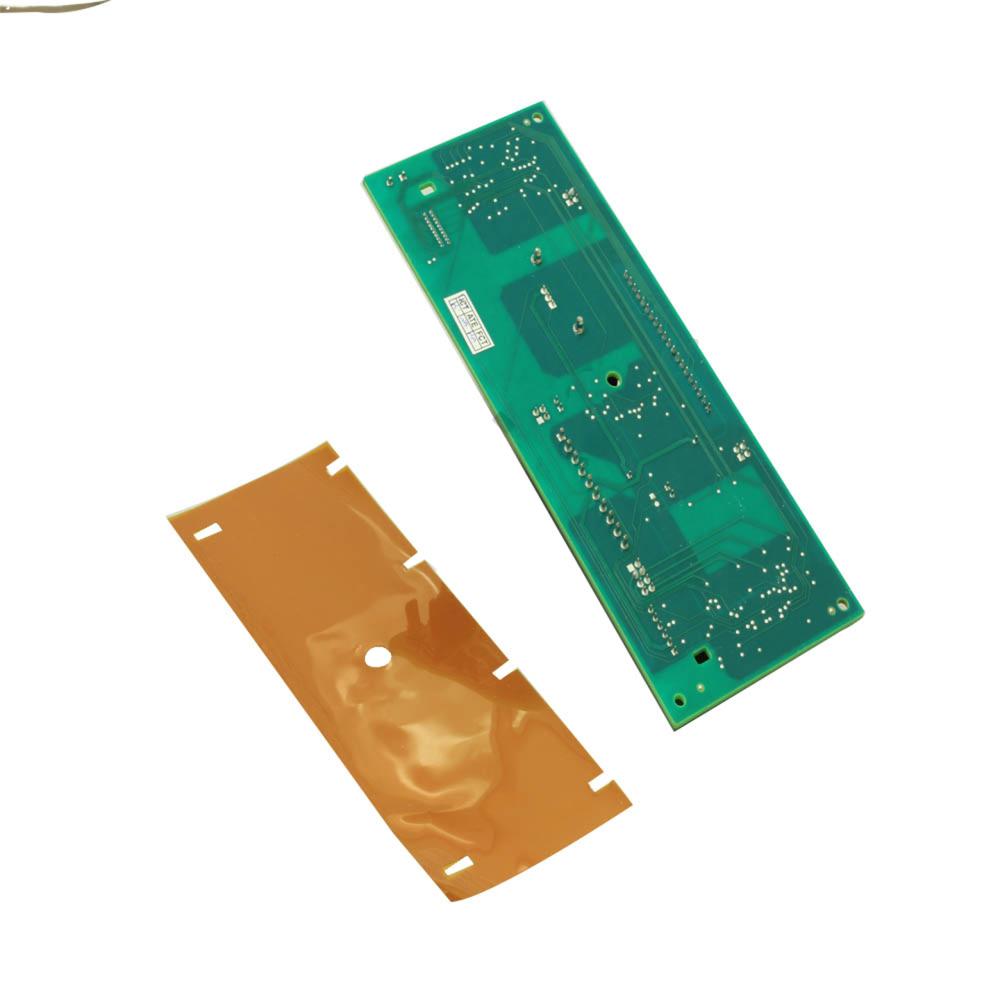

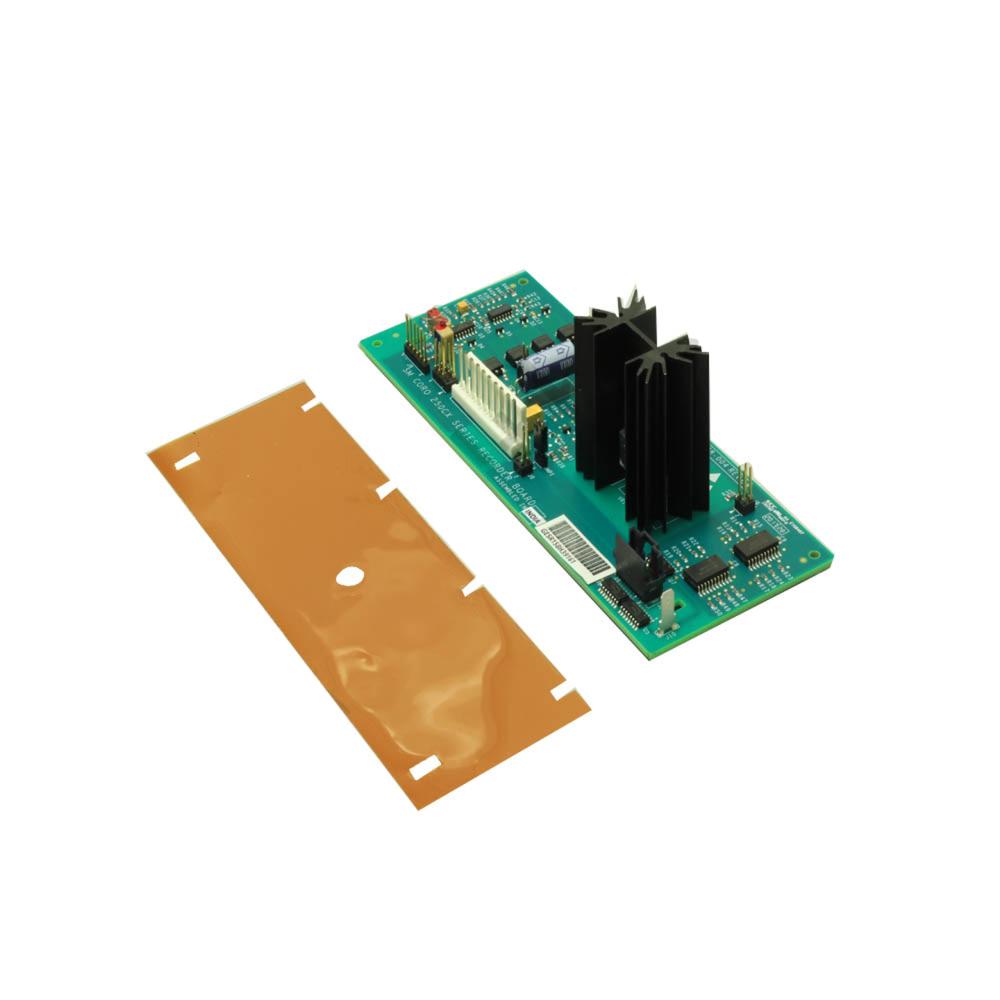

Corometrics 250 Recorder Board RoHS
| 2025177-072 | |
| 2025177-018 | |
| Nuovo | |
| Assistenza materno-infantile | |
| GE HealthCare | |
| GE HealthCare | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto
The Recorder Board for Corometrics™ 250 cx Series Monitor is a field replaceable unit (FRU). The Corometrics™ 250 cx Series monitor is a medical device for monitoring maternal/fetal parameters (Fetal Heart Rate, Uterine Activity, Maternal Noninvasive Blood Pressure, Maternal Pulse Oximetry, and Maternal/Fetal ECG) in labor and delivery (antepartum, intrapartum, and postpartum care). The monitor is equipped with an LCD display, which provides simultaneous display of fetal and maternal parameters plus the maternal waveforms, and a recorder, which prints continuous trends and alphanumeric data on one strip chart. The recorder board is responsible for driving the recorder motor and the recorder print head device along with providing the main system board with paper out/low/misload status. To drive the motor, it receives pulses from the main system board and provides the proper drive circuitry to drive the stepper motor four phase windings. To drive the print head an adjustable power supply is provided which is set to the print head specifications (each print head is unique.). Data to be printed and control information are received from the main system board, buffered and presented to the print head. Sensors from the recorder assembly to detect paper low/out/misload are received and translated to digital status lines to be sent to the main system board. The product is diligently designed for high performance and reliability. It is securely packaged inside a high quality packing box to avoid physical damage during transit and labeled with details about the product, Quality Assurance (QA) seal and shipment details.
Item equivalente:
Di seguito sono riportate ulteriori informazioni sugli articoli equivalenti. Gli articoli senza collegamento ipertestuale vengono visualizzati solo a scopo di riferimento e non sono disponibili per l'acquisto online.
| Item equivalente | Dettagli dell'articolo |
|---|---|
| 2025177-018 | FRU,CORO 250, RECORDER BOARD |
