ECG Trigger Box. Pulse 5 V
| 5421768 | |
| Nuovo | |
| Imaging molecolare e medicina nucleare | |
| GE HealthCare | |
| GE HealthCare | |
| N/A | |
Aggiungi a lista dei desideri
Accedi e aggiungi al carrello
Selezionare data
Approvazione seconda opinione necessaria
Immettere il numero approvazione e inviare per aggiungere articolo(i) al carrello.
Numero approvazione
Please enter approval number
OR
Non conosci il tuo numero approvazione? Chiamare il numero 800-437-1171
Immettere opz 1 per le prime tre richieste e rendere disponibile l’ID sistema.
Aggiungendo uno o più articoli al carrello e inviando l’ordine senza il
numero di approvazione, si verrà richiamati da GE prima della conferma dell’ordine
per la spedizione.
Approvazione seconda opinione necessaria
Select your approver's name and submit to add item(s) to your cart
Approver Name
Please Select Approver Name
OR
Don't know your approval number? Call 800-437-1171
Enter opt 1 for the first three prompts, and have your System ID available.
If you add item(s) to cart and submit your order without
selecting an approver, GE will contact you before your order
can be confirmed for shipment.
Informazioni sul prodotto

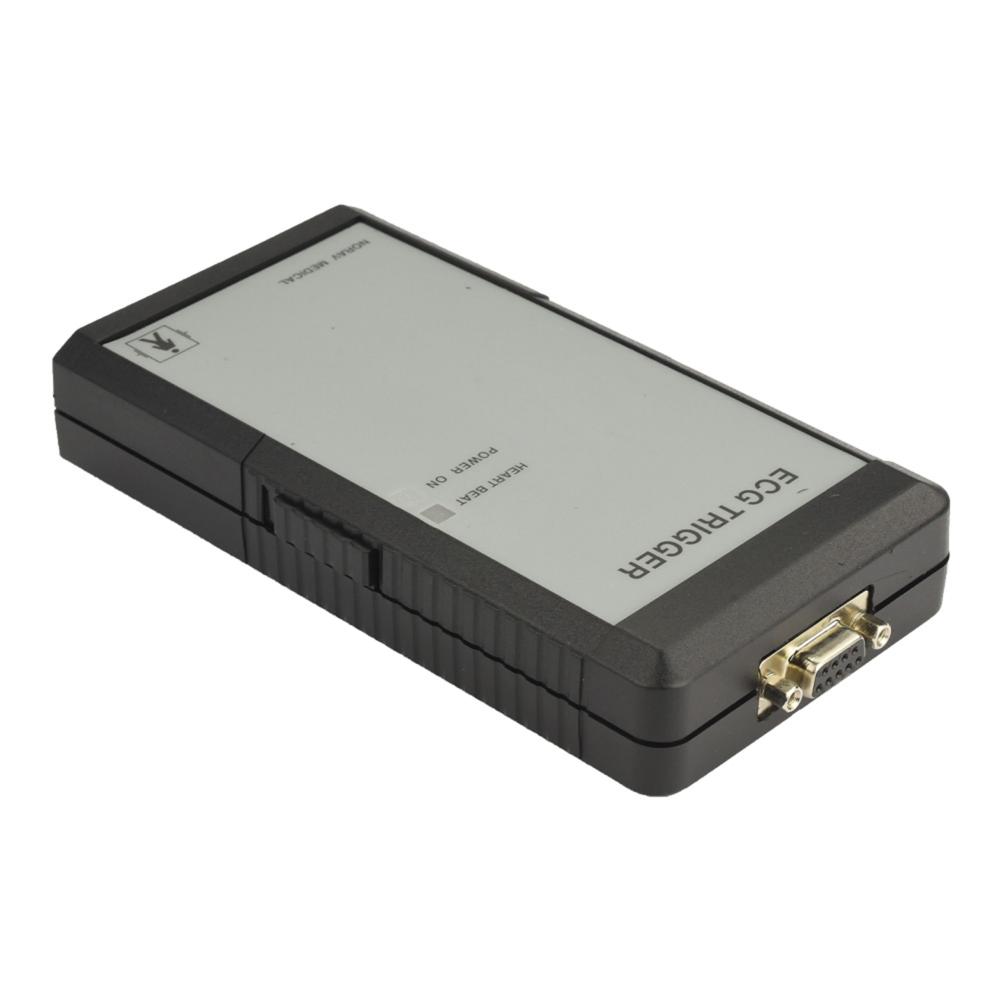

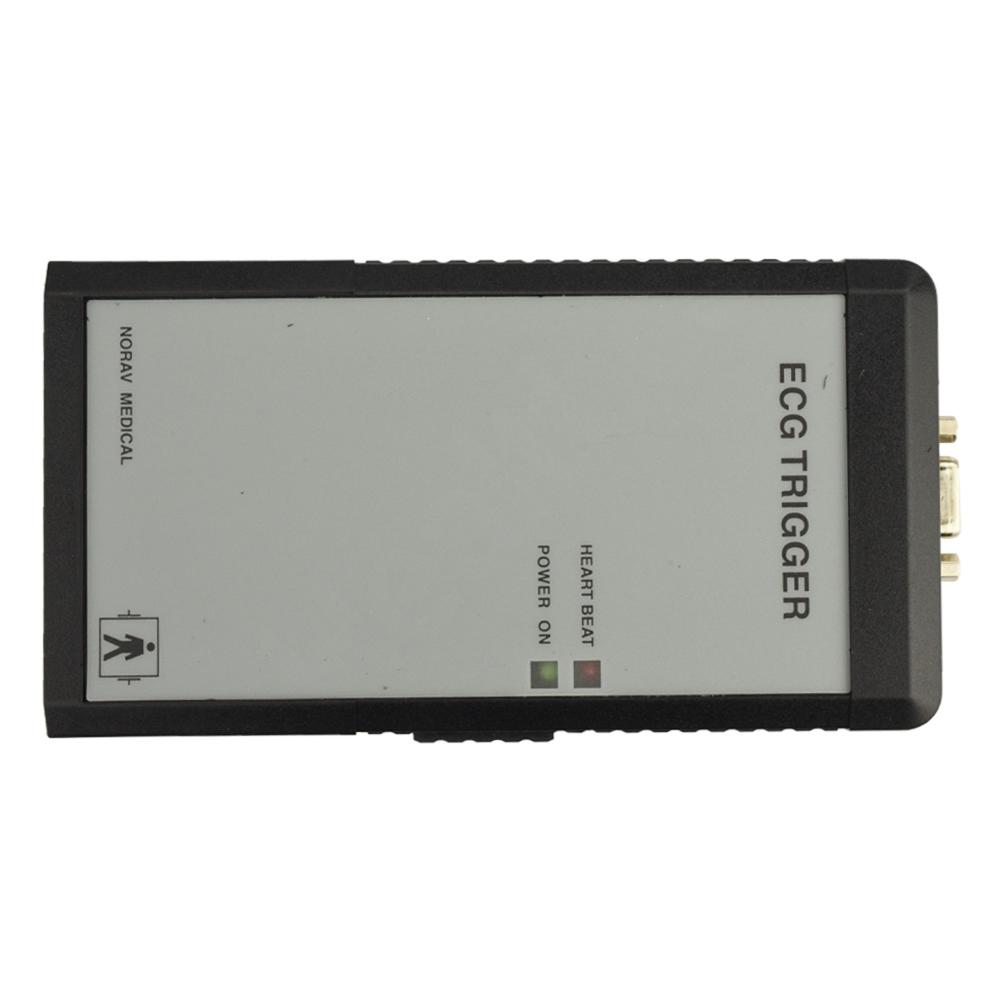

The ECG Trigger is a device which provides ECG and R-Wave pulse for display and triggering applications. It is intended for use when TTL level pulse should be triggered during medical tests, e.g. MRI, CT, Ultra Sound, Nuclear Medicine etc. This device designed to work with medical devices that comply with IEC60601-1 standard. The ECG trigger unit have a 9 pin D-SUB female connector for the power supply & data connection and a 15 pin D-SUB female connector for connecting it with patient cables. The input power supply required to operate the devices is +5 VDC. The unit have LED's for power and Hert beat indication. The part is RoHS compliant and is approved for today’s safety standards. It is diligently designed for excellent performance and reliability. The assembly is securely packed inside high quality shipping box to avoid physical damage during transit.
